Model: COCUR-0100-B1-M-1PH
Product Description

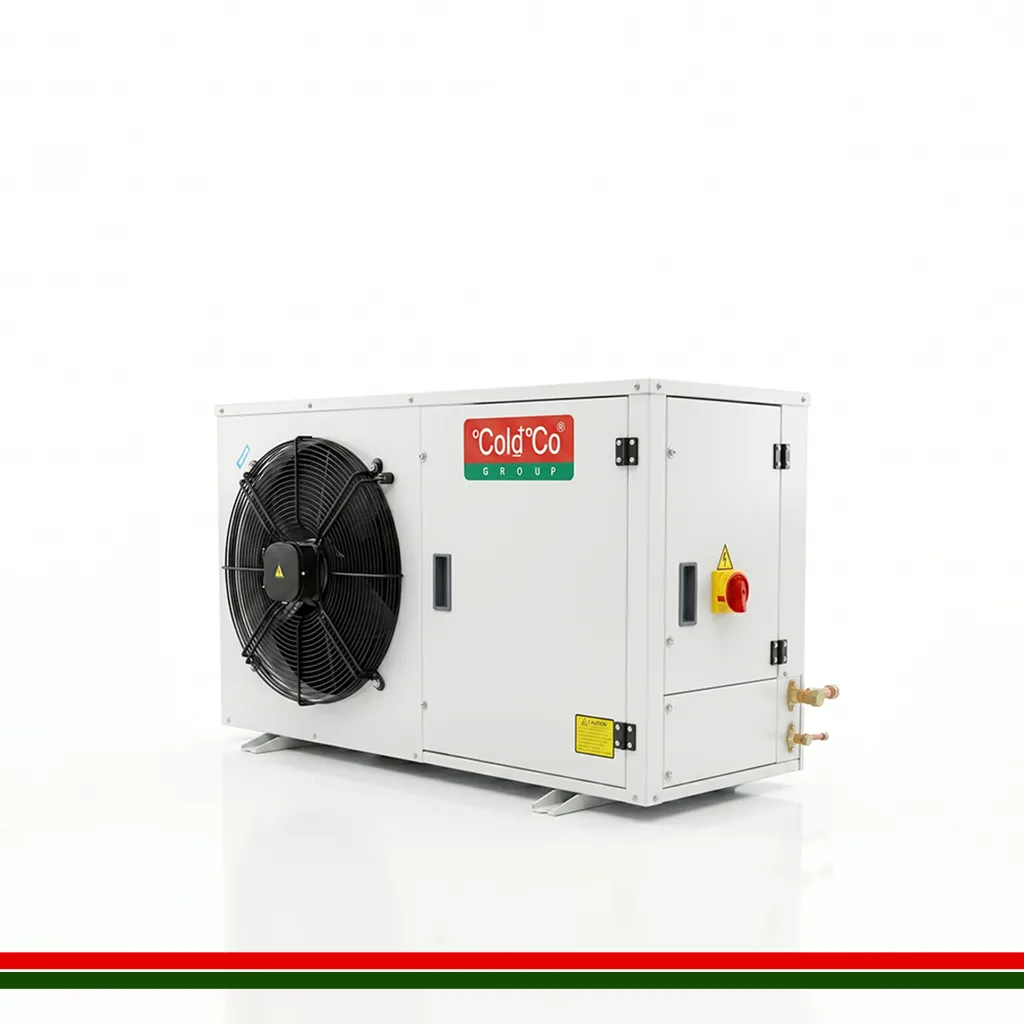

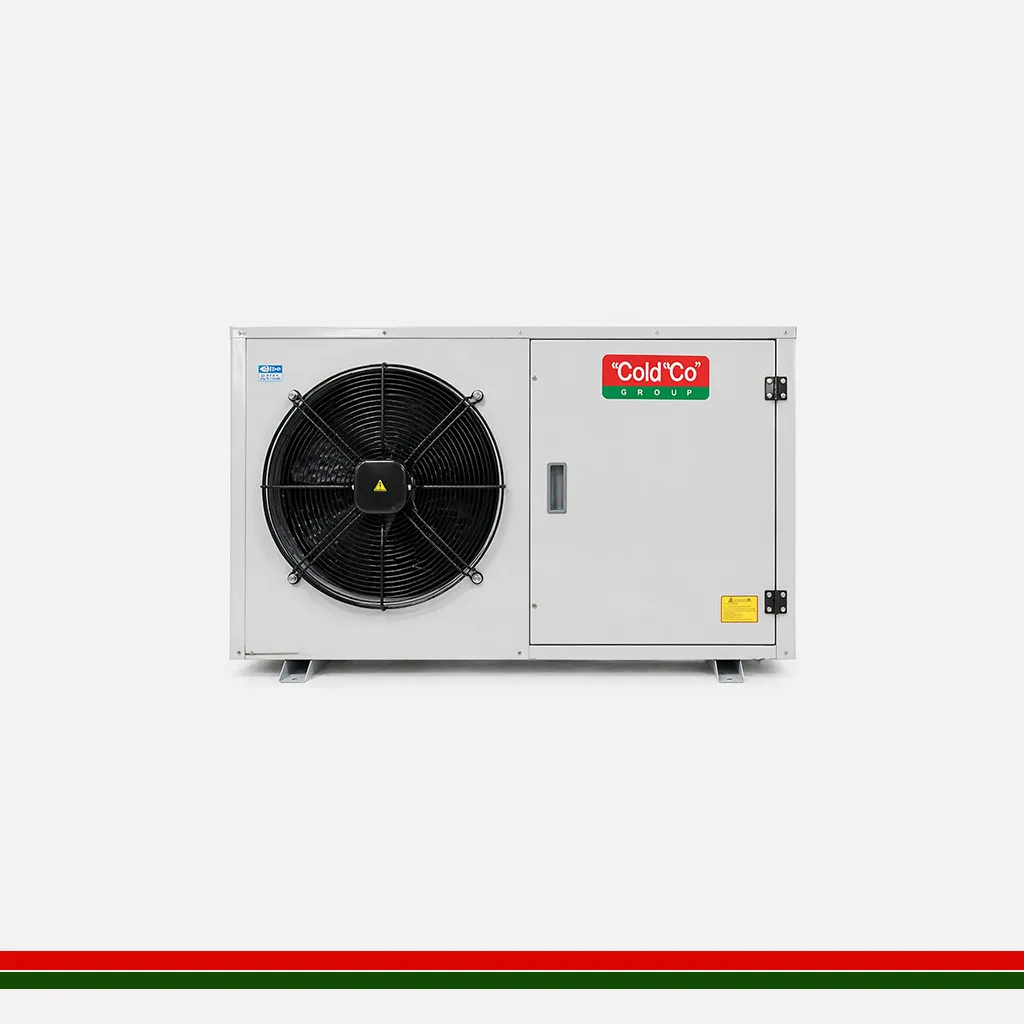

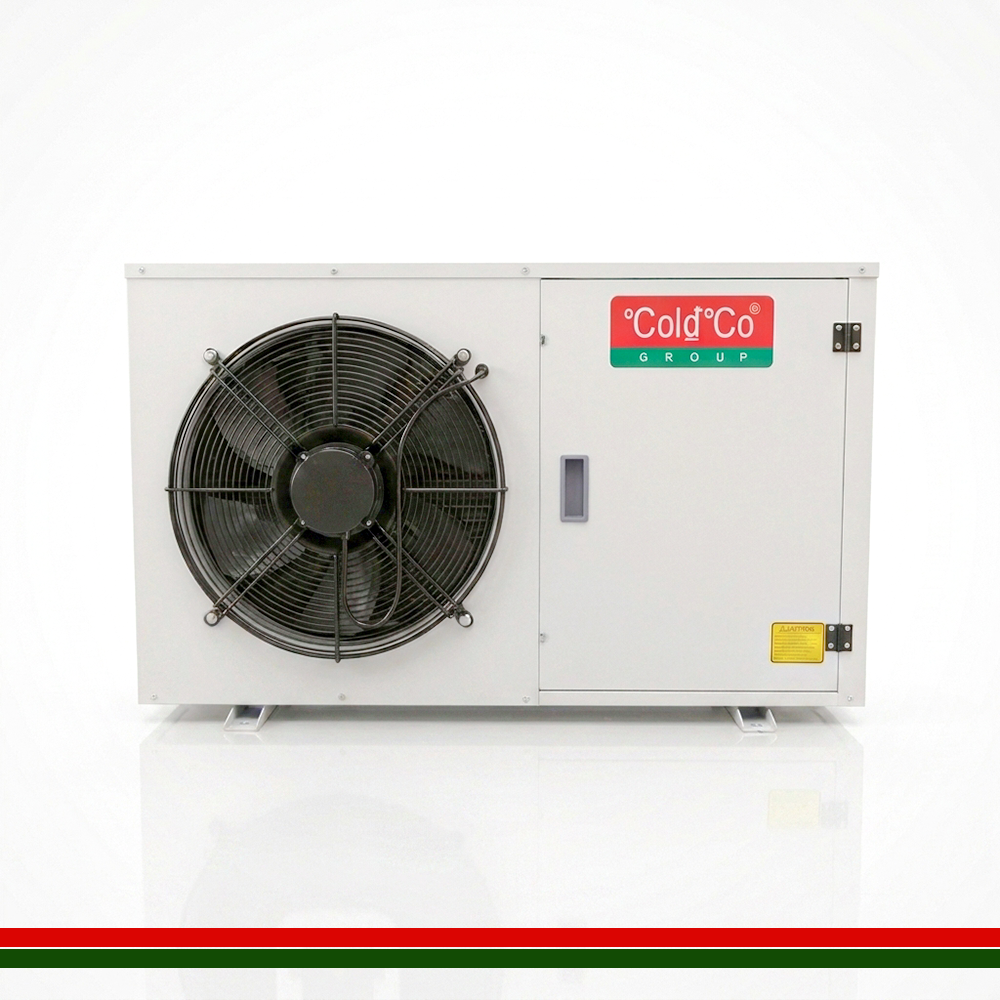

The Coldco Apex 1HP Condensing Unit is designed for medium-temperature commercial refrigeration applications requiring reliable and energy-efficient cooling. Featuring a high-performance hermetic compressor and low-noise operation, this unit is ideal for cold rooms, display chillers, beverage coolers, and food storage applications. The weatherproof galvanized steel cabinet with powder-coated finish ensures long-lasting durability in both indoor and outdoor installations.
Technical Specifications
| Specification | Value |
|---|
| Model | COCUR-0100-B1-M-1PH |
| Cooling Application | Medium Temperature |
| Operating Range | -10°C to +45°C Ambient |
| Compressor Model | NT6226GK |
| Compressor Type | Hermetic |
| Nominal Power | 1 HP |
| Power Supply | 220V / 1 Phase / 50Hz |
| Maximum Current | 7.6 A |
| Fan Power | 74 W |
| Fan Speed | 920 RPM |
| Suction Line | 1/2" |
| Liquid Line | 3/8" |
| Weight | 62 kg |
| Noise Level | 31 dBA |
| Refrigerants | R134a, R404A, R507A, R448A, R449A |
| Features | Applications |
|---|
| • Low-noise operation | • Cold Rooms |
| • Corrosion-resistant cabinet | • Supermarkets |
| • Blue Fin condenser protection | • Convenience Stores |
| • Built-in overload protection | • Beverage Cooling |
| • Suitable for outdoor installation | • Dairy Storage |
| • High-efficiency cooling performance | • Commercial Refrigeration Systems |
| • Easy maintenance access | • Food Storage Facilities |
