Model: COCUR-0150-B1-M-1PH
Product Description

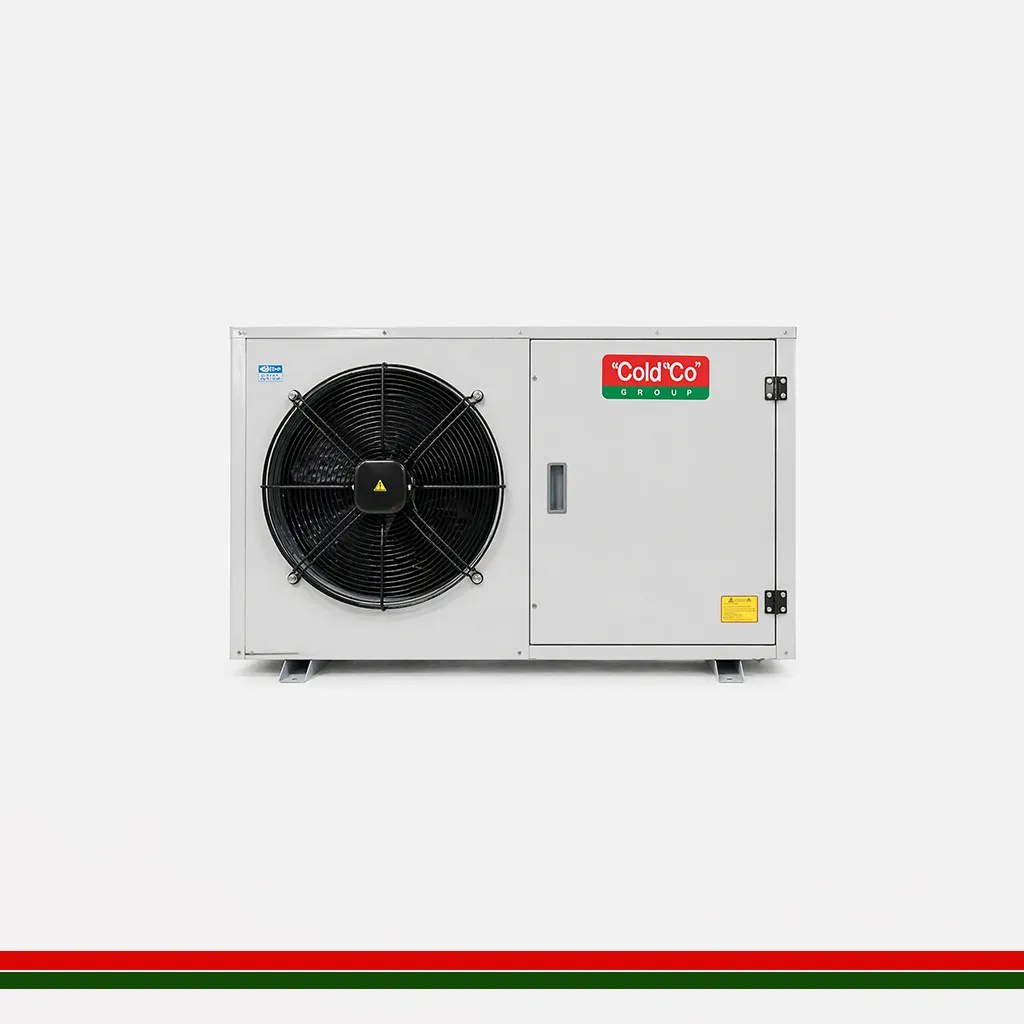

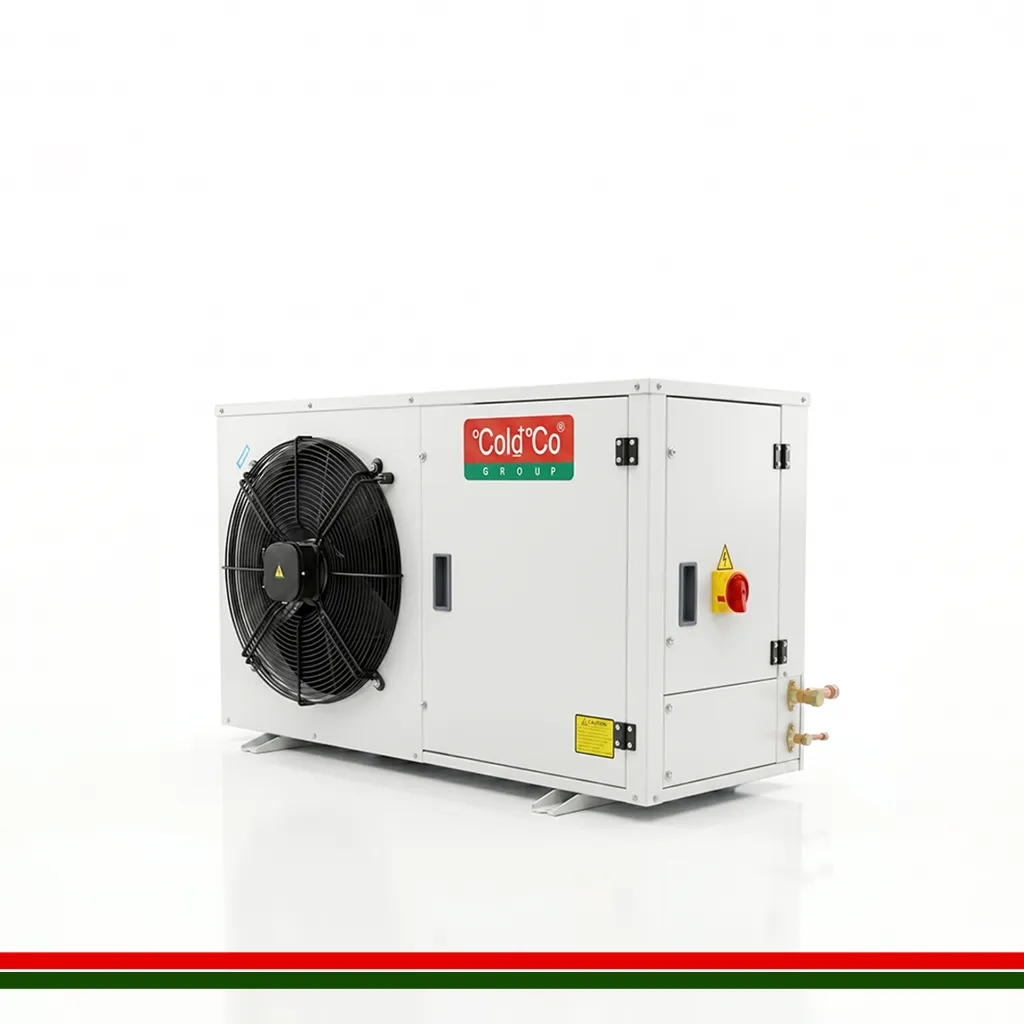

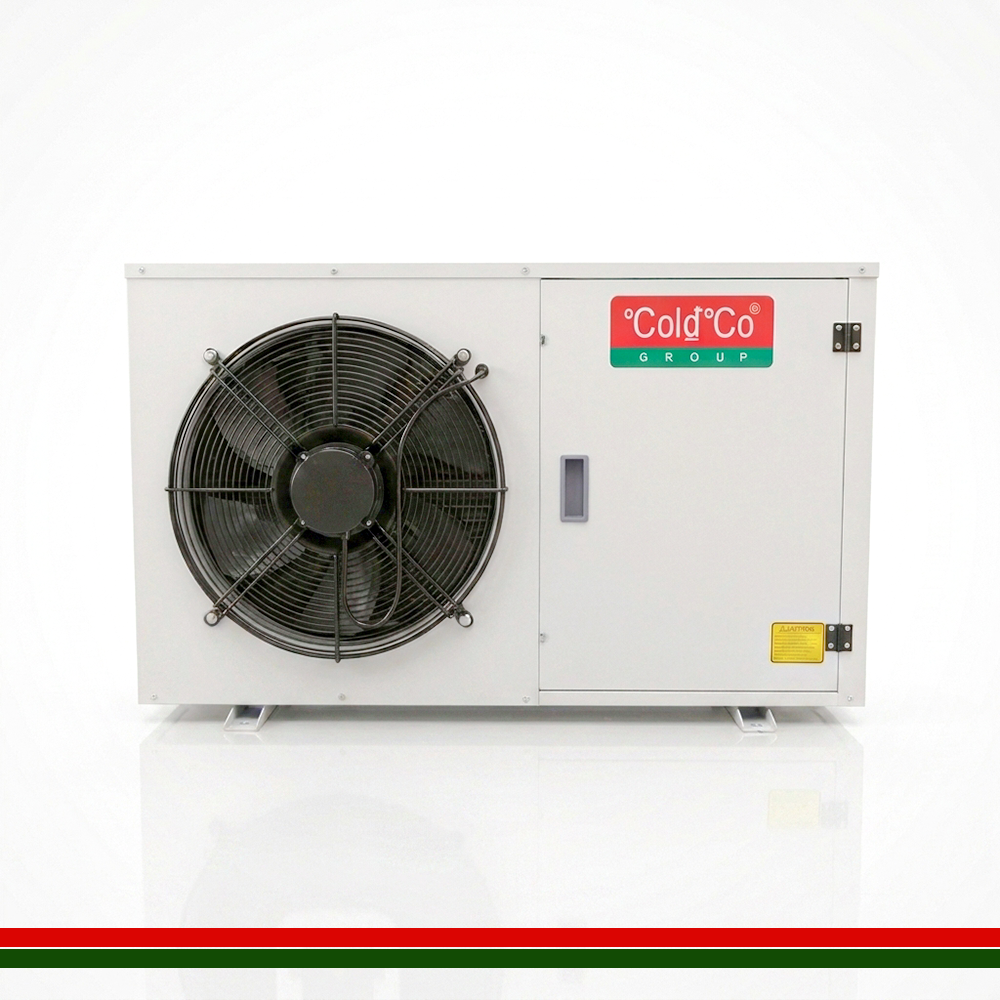

The Coldco Apex 1.5HP Condensing Unit is engineered to provide dependable refrigeration performance for medium-temperature cooling applications. Built with a robust hermetic compressor and high-efficiency condenser system, this unit delivers stable cooling performance while maintaining low operating noise. It is ideal for commercial refrigeration systems where reliability and efficiency are essential.
Technical Specifications
| Specification | Value |
|---|
| Model | COCUR-0150-B1-M-1PH |
| Cooling Application | Medium Temperature |
| Operating Range | -10°C to +45°C Ambient |
| Compressor Model | NJ9238GK |
| Compressor Type | Hermetic |
| Nominal Power | 1.5 HP |
| Power Supply | 220V / 1 Phase / 50Hz |
| Maximum Current | 10.0 A |
| Fan Power | 74 W |
| Fan Speed | 920 RPM |
| Suction Line | 1/2" |
| Liquid Line | 3/8" |
| Weight | 64 kg |
| Noise Level | 32 dBA |
| Refrigerants | R134a, R404A, R507A, R448A, R449A |
| Features | Applications |
|---|
| • Hermetic compressor technology | • Cold Rooms |
| • Low-noise operation | • Supermarkets |
| • Blue Fin condenser protection | • Beverage Coolers |
| • Corrosion-resistant cabinet | • Dairy Storage |
| • Built-in electrical protection | • Restaurants |
| • Suitable for outdoor installation | • Food Storage Facilities |
| • Reliable cooling performance | • Commercial Refrigeration Systems |
