Model: COCUS-0200-B2-M-1PH
Product Description

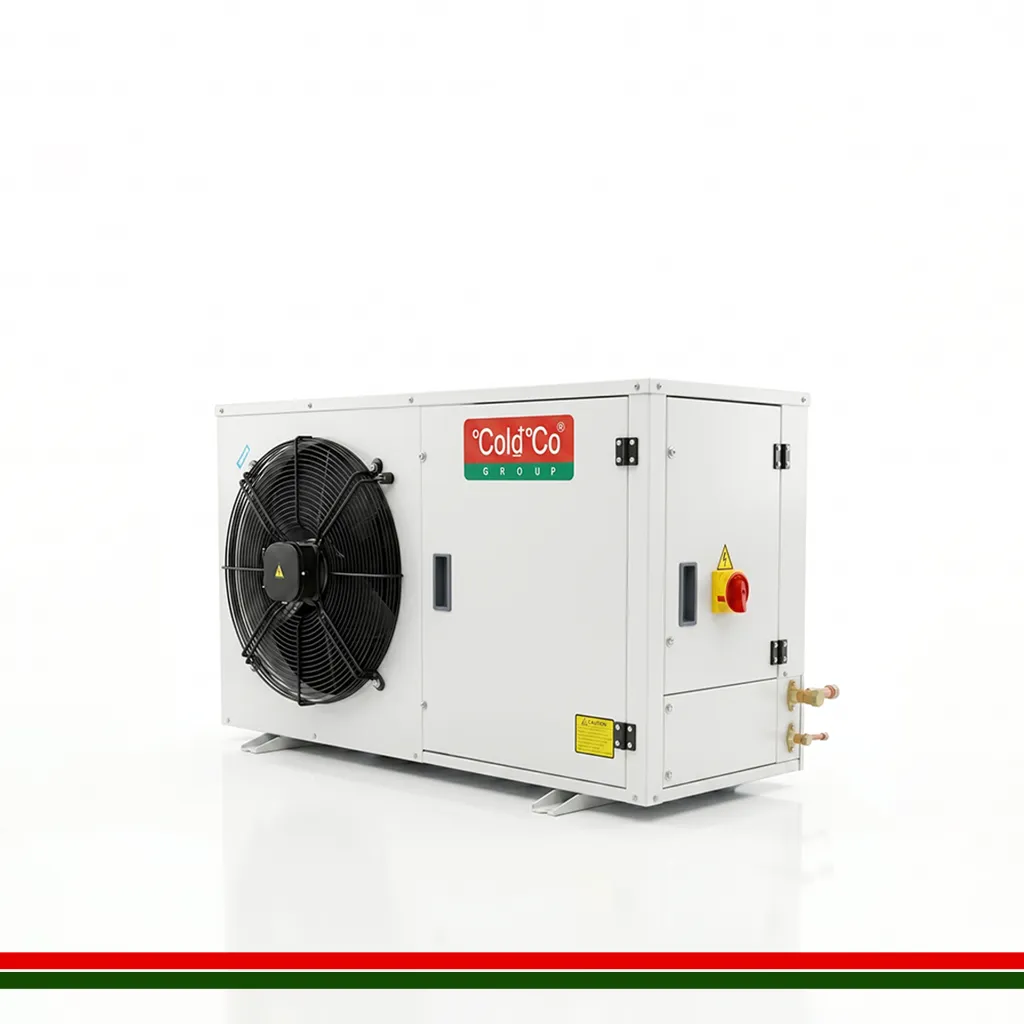

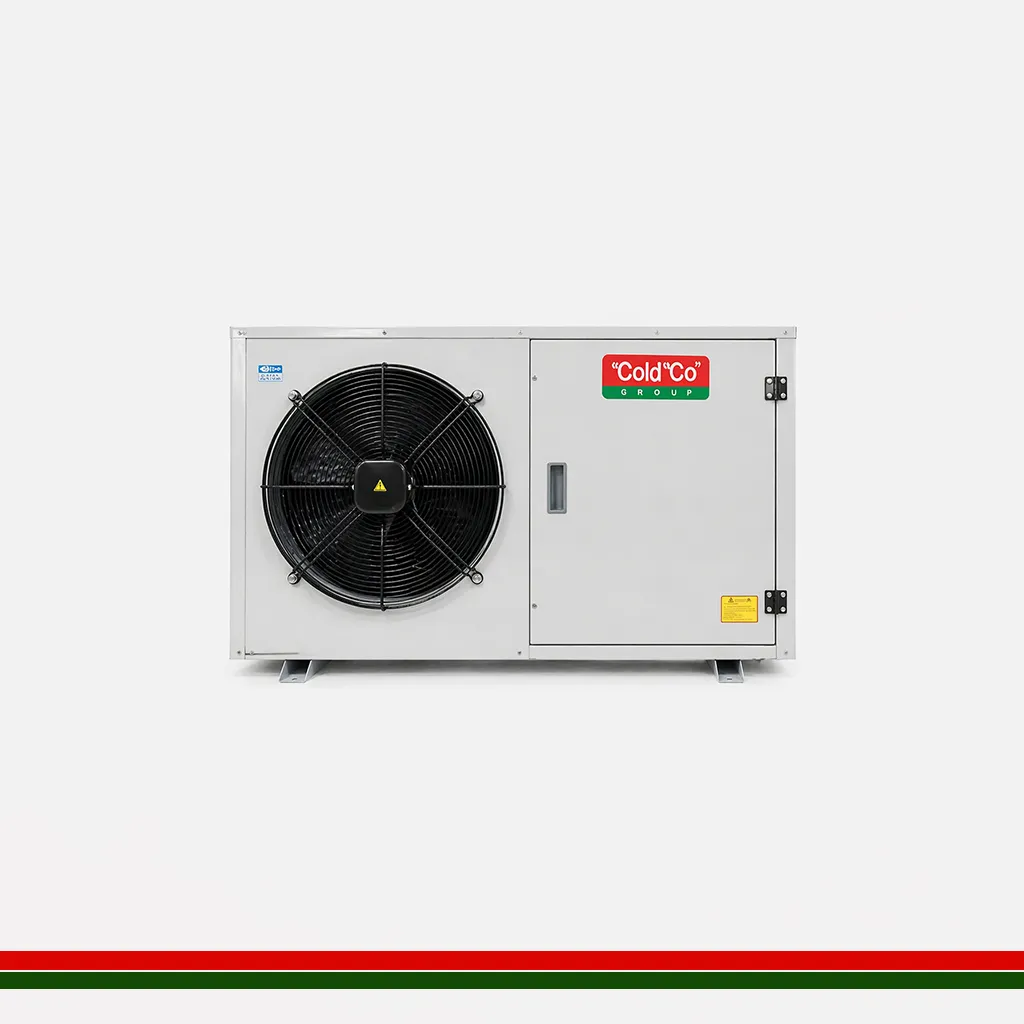

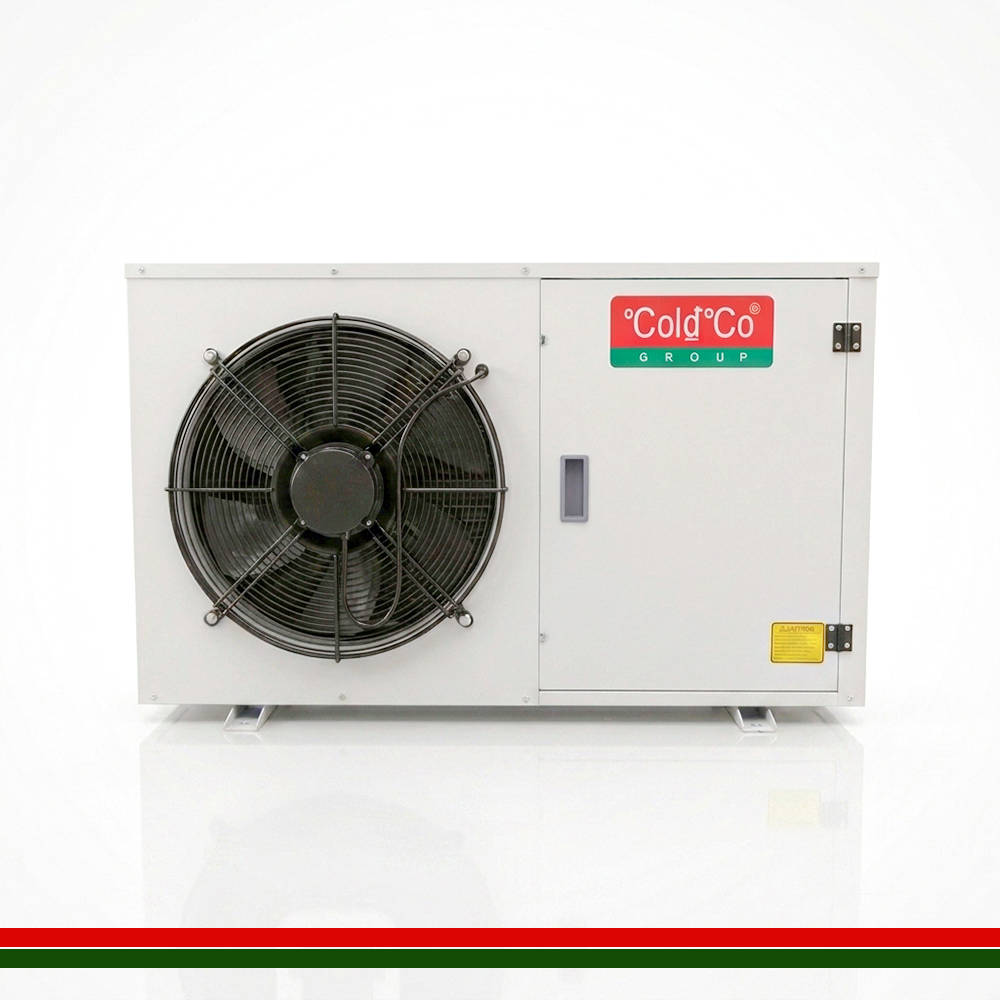

The Coldco Apex 2HP Condensing Unit is designed for demanding medium-temperature refrigeration applications requiring superior performance and energy efficiency. Featuring a Copeland Scroll compressor, this unit offers reliable cooling capacity, low maintenance requirements, and excellent operational efficiency for commercial refrigeration environments.
Technical Specifications
| Specification | Value |
|---|
| Model | COCUS-0200-B2-M-1PH |
| Cooling Application | Medium Temperature |
| Operating Range | -10°C to +45°C Ambient |
| Compressor Model | ZB15KQE-PFJ |
| Compressor Type | Copeland Scroll |
| Nominal Power | 2 HP |
| Power Supply | 220V / 1 Phase / 50Hz |
| Maximum Current | 16.0 A |
| Fan Power | 150 W |
| Fan Speed | 920 RPM |
| Suction Line | 3/4" |
| Liquid Line | 3/8" |
| Weight | 79 kg |
| Noise Level | 38 dBA |
| Refrigerants | R134a, R404A, R507A, R448A, R449A |
| Features | Applications |
|---|
| • Copeland Scroll compressor | • Cold Rooms |
| • Low-noise operation | • Supermarkets |
| • Blue Fin condenser protection | • Convenience Stores |
| • Corrosion-resistant cabinet | • Beverage Cooling |
| • Built-in overload protection | • Dairy Storage |
| • Suitable for outdoor installation | • Commercial Refrigeration Systems |
| • High-efficiency cooling performance | • Food Storage Facilities |
