Model: COCUS-0500-B3-M-3PH
Product Description

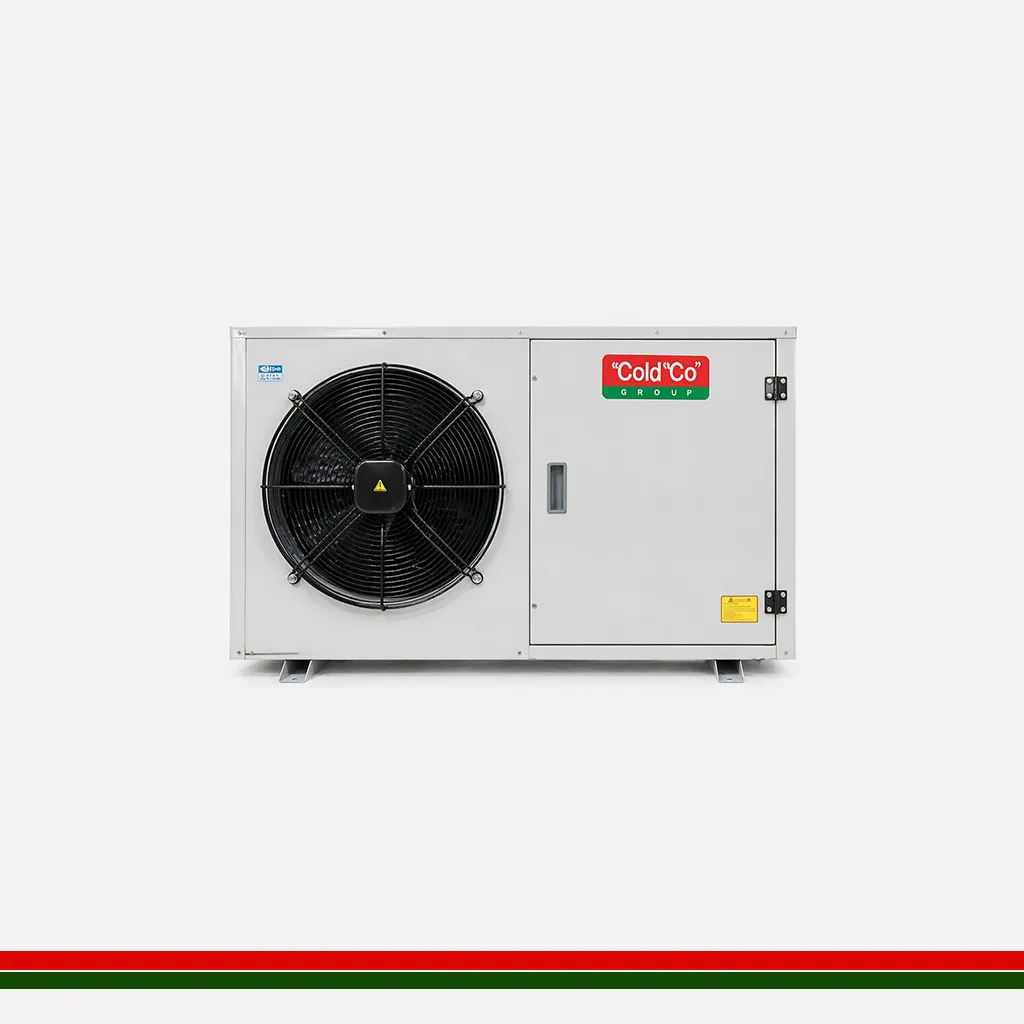

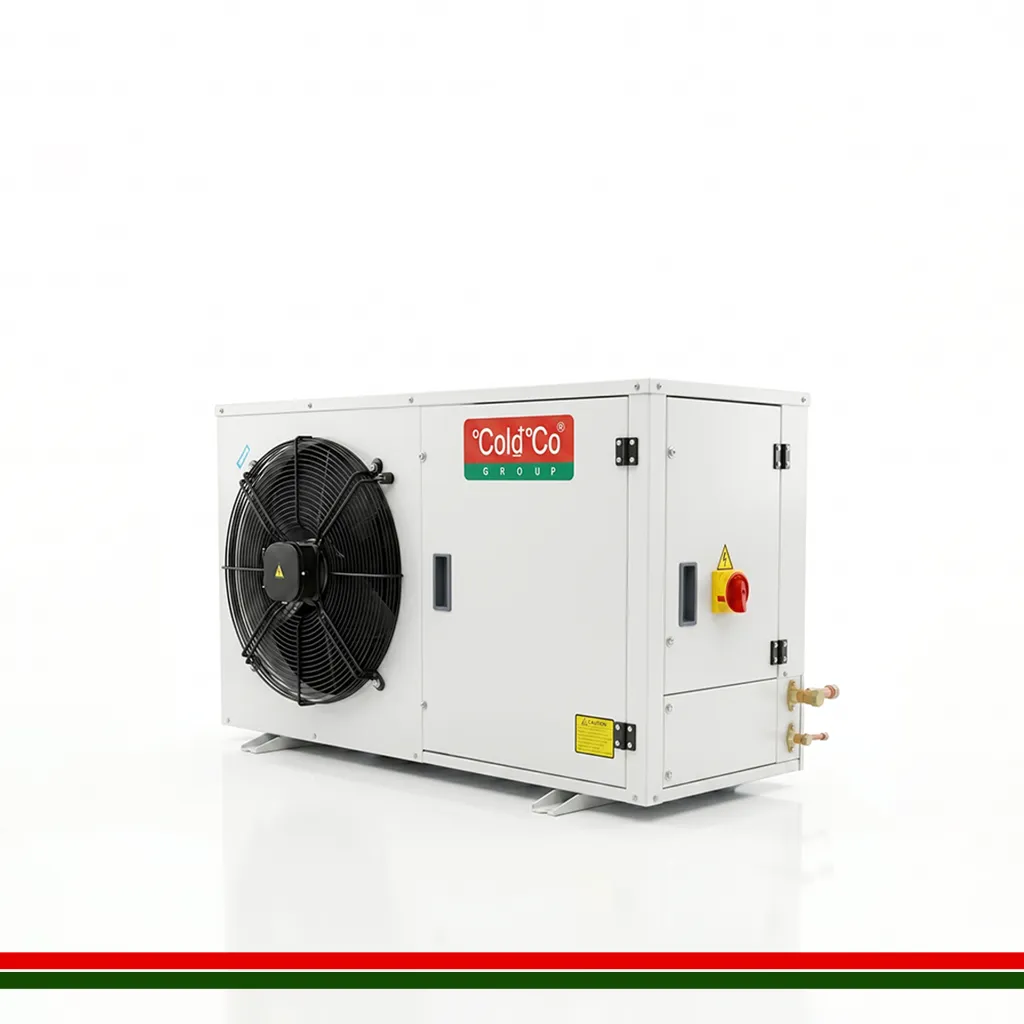

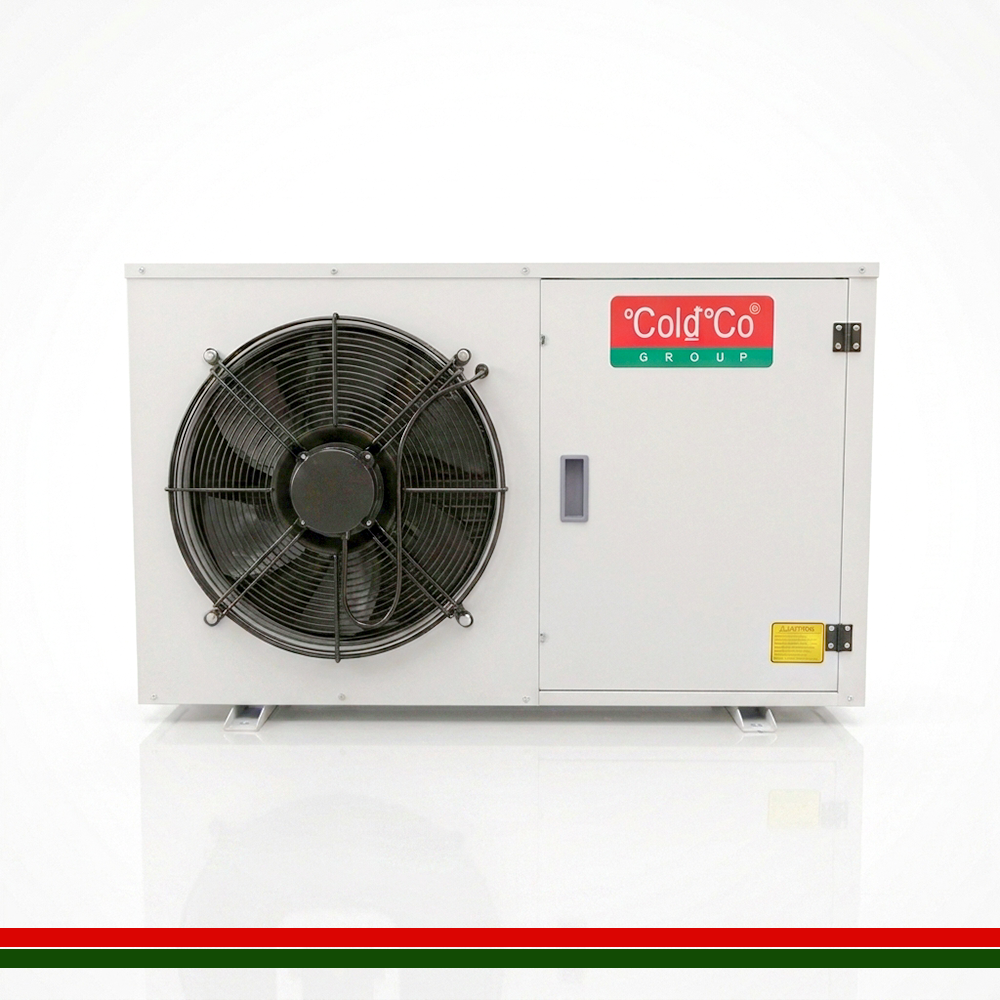

The Coldco Apex 5HP Three-Phase Condensing Unit is built for demanding commercial refrigeration environments. Equipped with a powerful Copeland Scroll compressor, it delivers efficient cooling performance and dependable operation.
Technical Specifications
| Specification | Value |
|---|
| Model | COCUS-0500-B3-M-3PH |
| Cooling Application | Medium Temperature |
| Operating Range | -10°C to +45°C Ambient |
| Compressor Model | ZB38KQE-TFD |
| Compressor Type | Copeland Scroll |
| Nominal Power | 5 HP |
| Power Supply | 380V / 3 Phase / 50Hz |
| Maximum Current | 13.5 A |
| Fan Power | 230 W |
| Fan Speed | 900 RPM |
| Suction Line | 7/8" |
| Liquid Line | 1/2" |
| Weight | 114 kg |
| Noise Level | 44 dBA |
| Refrigerants | R134a, R404A, R507A, R448A, R449A |
| Features | Applications |
|---|
| • Copeland Scroll compressor | • Cold Rooms |
| • Heavy-duty refrigeration performance | • Supermarkets |
| • Blue Fin condenser protection | • Beverage Cooling |
| • Corrosion-resistant cabinet | • Dairy Storage |
| • Built-in overload protection | • Commercial Refrigeration Systems |
| • Suitable for outdoor installation | • Food Storage Facilities |
| • High-capacity cooling output | • Distribution Centers |
